Vishes Global is a single source supplier of best available technology for the Stainless Steel Industry to solve cleaning, passivation and corrosion problems associated with all grades of stainless steel and high performance alloys, including Duplex and Titanium.

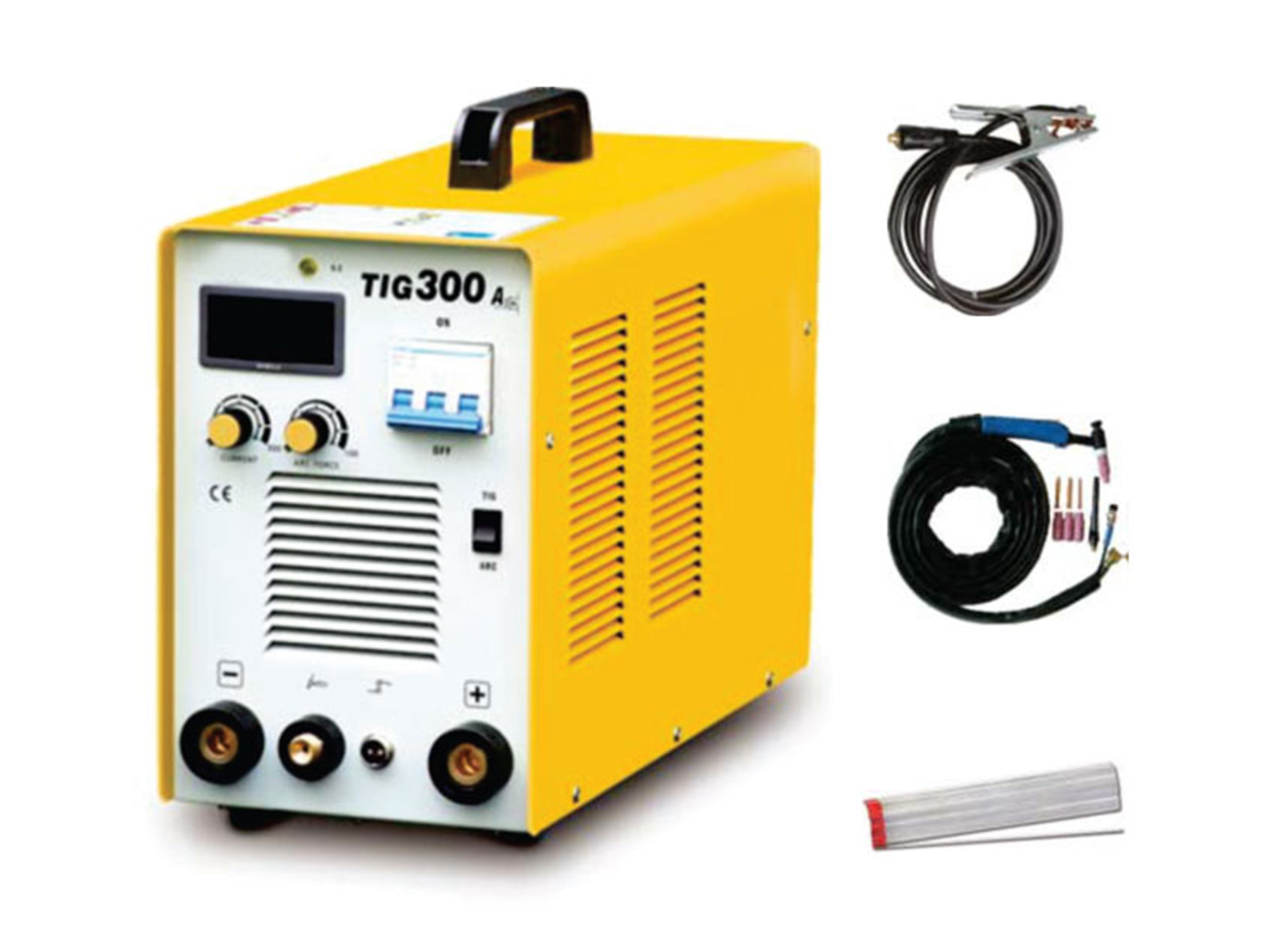

DC TIG
MMA
Inverter Power Source
TIG Torch 4m
Earth Clamp 3m
Tungsten Electrode, cerium-tungsten
Electrode holder 3m
Helmet
Arc Force adjustable
The success rate of arc striking is up to more than 99%
| Model | Input Voltage/ Phase / Frequency |
Output current/ Voltage /Duty cycle (400 °c) |
Amps input at Rated output |
Output range / OCV | Dimension | Weight (kg) |
|---|---|---|---|---|---|---|
| TIG 250A | 220V/1P/50-60hz |
TIG: 210A/18.4V/40% 150A/16V/100% MMA: 210A/28.4V/40% 150A/26V/100% |
TIG: 35.9A@210A MMA: 59.8A@210A |
TIG: 15-210A/63V MMA: 15-210A/63V |
505*203*375 | 19 |
| TIG 300A | 380V/3P/50-60hz |
TIG: 230A/19.2V/40% 160A/16.4V/100% MMA: 230A/29.2V/40% 160A/26.4V/100% |
TIG: 12.7A@230A MMA: 21A@230A |
TIG: 15-210A/63V MMA: 15-210A/63V |
505*203*375 | 19 |
