MMA

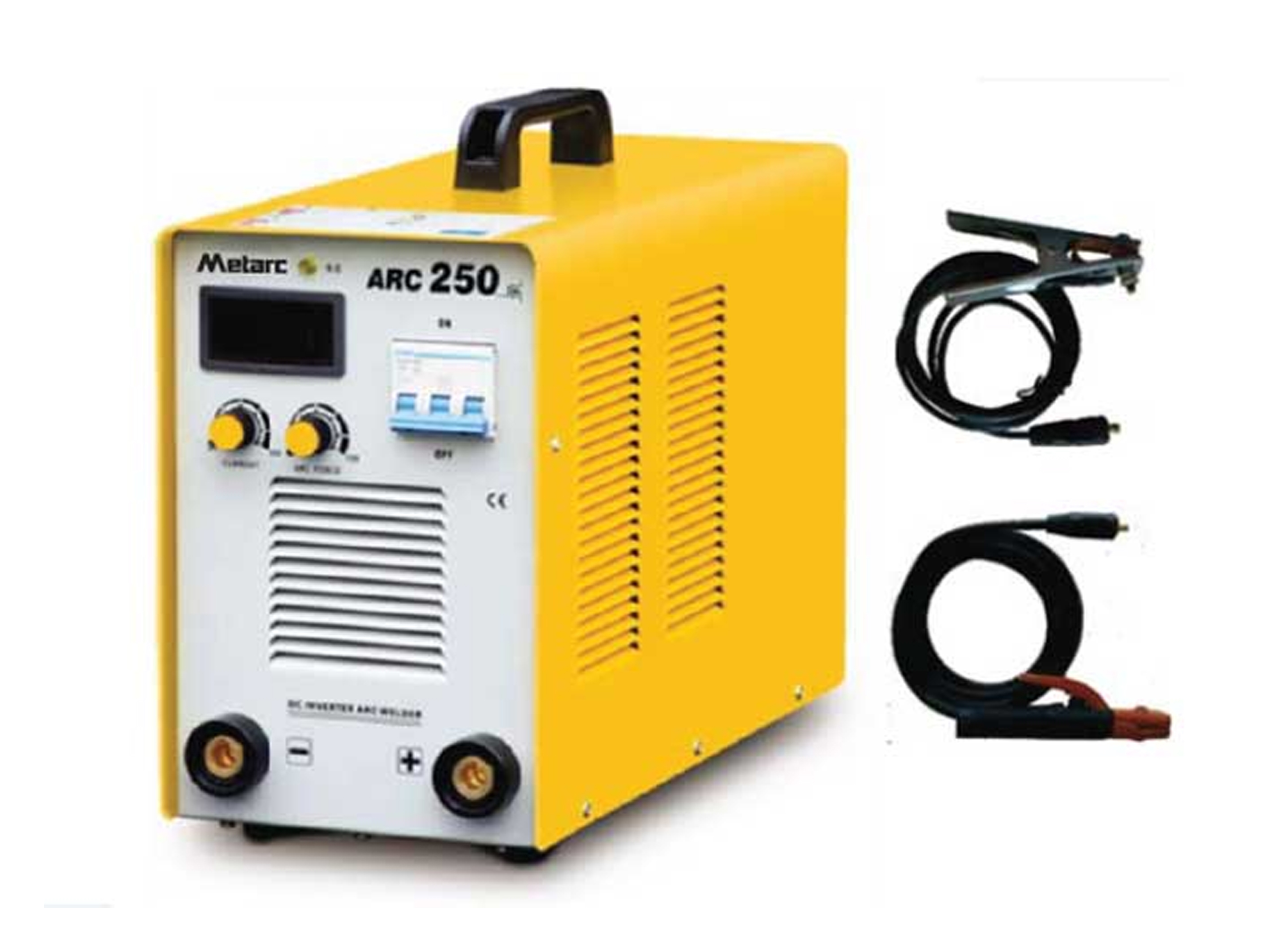

Inverter Power Source
Electrode Holder 3m
Earth Clamp 3m
Quick Plug
Wrench
Helmet
VRD Built-in.
Air Force adjustable.
Self-adaptive Hot start Built-in, Anti sticking.
Recommend for 4.0mm Electrode
Suitable for acid Electrode and Basic Electrode.
| Model | Input Voltage/ Phase / Frequency | Output current/ Voltage /Duty cycle (400 °C) | Amps input at Rated output | Output range / OCV | Dimension | Weight (kg) |
|---|---|---|---|---|---|---|
| ARC 250 | 220V/1P/50-60hz | 210A/28.4V/60% 165A/26.6V/100% |
38.9A@210A | 30-210A/56V/17V/ (VRD) |
480*204*303 | 17.5 |
| ARC 250 | 380V/3P/50-60hz | 210A/28.4V/60% 165A/26.6V/100% |
13A@210A | 30-210A/56V/17V/ (VRD) |
480*204*303 | 17.5 |
| ARC 250 | 380V/3P/50-60hz | 240A/29.6V/30% 165A/26.6V/100% |
13.6A@240A | 30-240A/65V/17V/ (VRD) |
480*204*303 | 17.5 |
